soundguy OB Stretch Mapper
Drag the kit where you want it and the cables stretch with it. Fold a 64-channel block down to one line, or stretch it out to every channel, without losing a single patch.

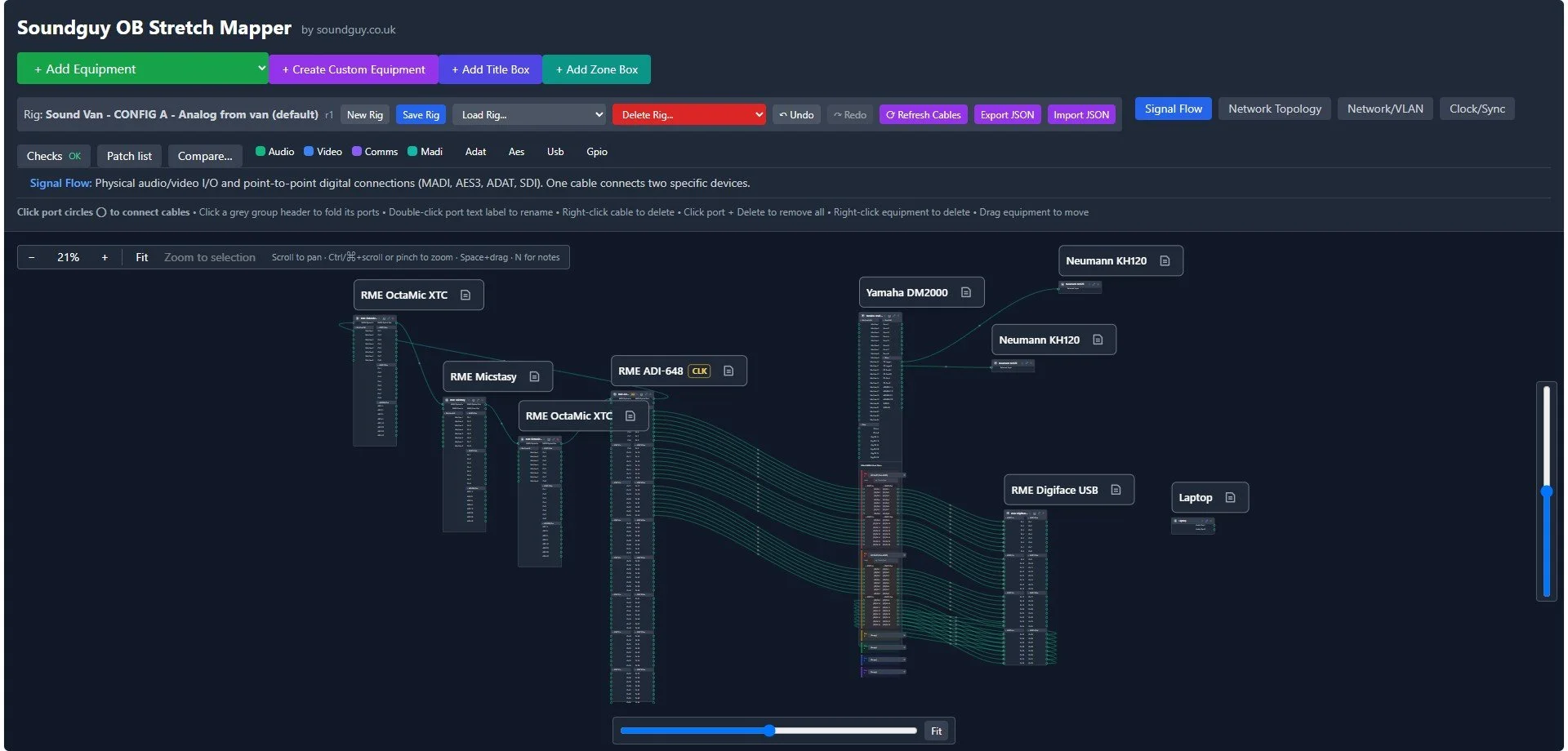

A whole sound van on one canvas. Drag a rack anywhere and the cables stretch with it.

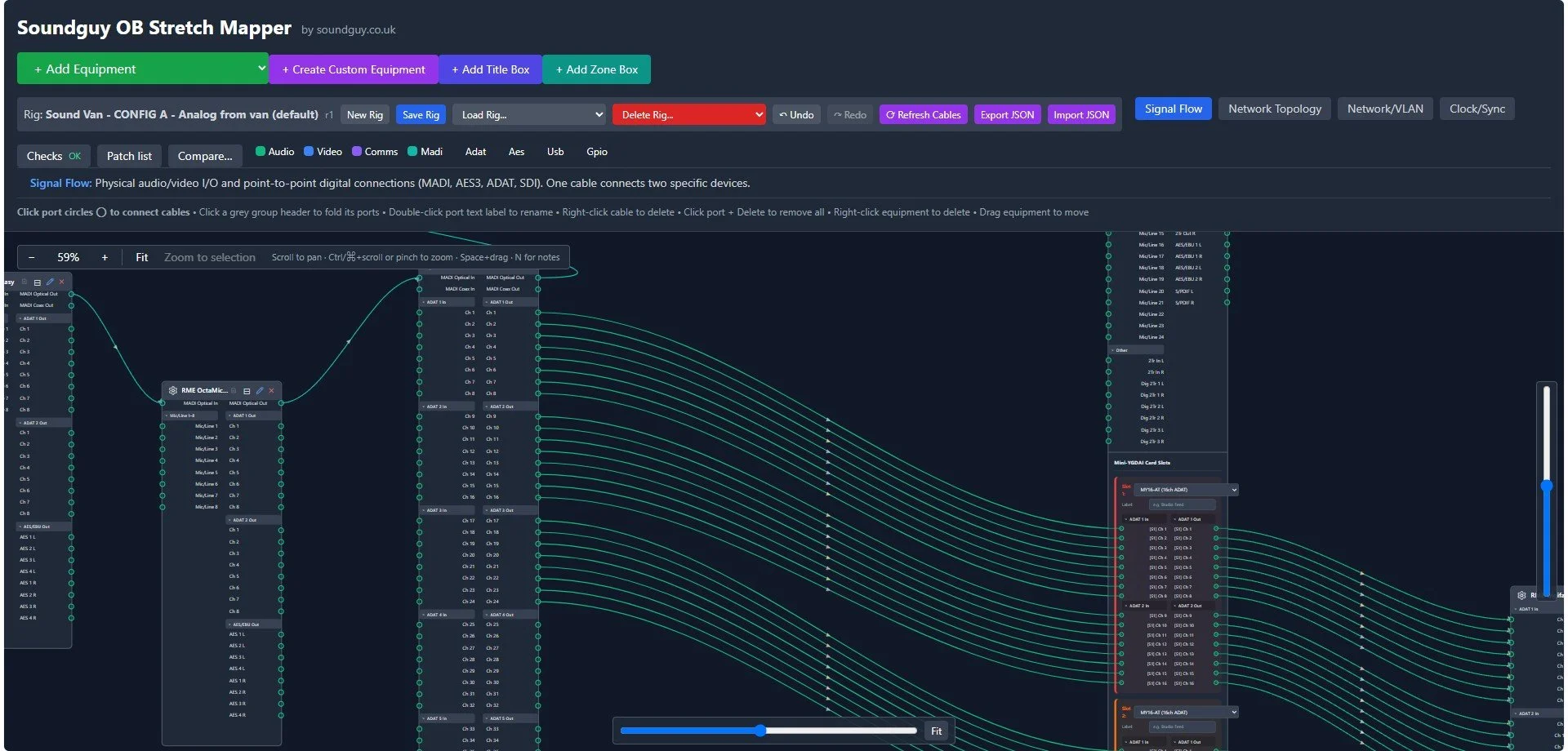

Stretch a device out and every channel is there: 32 separate ADAT cables, patched one at a time..
A free tool for planning outside-broadcast and location sound rigs. Real kit from RME, Yamaha, Calrec, Alesis, Glensound and others, with card slots that generate the right ports, and separate layers for signal, network, VLAN and clock.
Check the rig before you get to site: inputs fed twice, clock loops, sample-rate mismatches, kit with no clock source.
Print a patch list and a device sheet for the crew.
Add your own kit, with notes that travel with it when you share it.
Compare two versions of a rig to see exactly what changed.
Your rigs stay on your own machine; nothing is uploaded. It works in any modern browser, including iPads on site.
A work in progress
I'm building this as I go, so expect rough edges and the odd bug. Save your work often, and keep a copy of anything important: use Export JSON to save a rig as a file you can reopen later.
Tell me what breaks, what's missing and what kit you'd want in the library. That's what shapes the next version.
